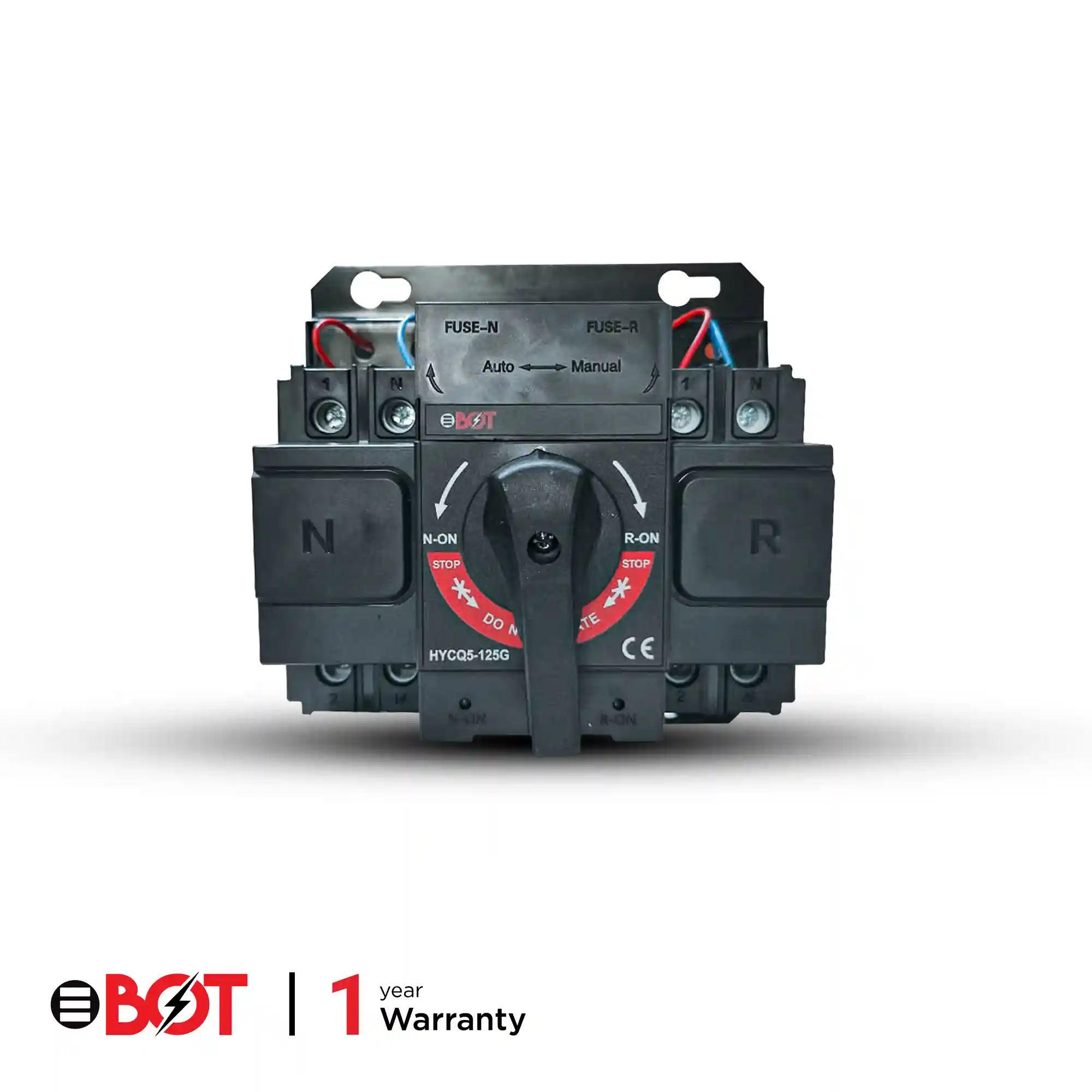

HYCQ5-125G/2P Automatic Transfer Switch (ATS)

~~৳6000~~ ৳4800

Ratting : (0)

Brand : eBOT

Pay From

Fast Delivery all across the country
Safe Payment
100% Authentic Product

- +

হোয়াটসঅ্যাপে অর্ডার করুন

কল অর্ডার

Product Details:
✅ Model: HYCQ5-125G
✅ Rated Current: Available up to 125A
✅ Rated Operating Voltage: 230V AC (2-Pole Configuration)
✅ Rated Frequency: 50 / 60 Hz
✅ Control Power Supply: AC 230V
✅ Electrical Class: PC Class (Infrequent changeover)
✅ Utilization Category: AC-33B
✅ Mechanical Life Up to 5,000 operations
✅ Operating Temperature: -5°C to +40°C

Key Product Features:
✅ Self-Switching & Self-Recovery: The built-in controller constantly tracks voltage on both circuits. If the main power suffers an abnormality (such as voltage loss or phase loss), it triggers a transfer to the backup power immediately. Once normal power stabilizes, the system shifts the load back to the primary line automatically.
✅ Dual Operation Modes: An integrated toggle switch lets you choose between Automatic Mode (fully independent relay-driven shifting) and Manual Mode (manually toggling via the physical rotary knob). Safety Construction: Constructed with a high-grade PC flame-retardant shell
✅ Integrated Safety Fuses: Features a built-in fuse module at the top (FUSE-N and FUSE-R) protecting the internal command control circuitry.

Warranty:
1 year official brand warranty.

Note:
1. Warranty will not be valid for damage caused by incorrect installation.
2. It is better to give a maximum of 80% load. If the load is correct, the device will serve for a long time, InshaAllah.
3. Warranty will not be valid for overload/lightning/terminal burnout or external damage.
4. For any problem or assistance, call the support center.
5. To get the warranty, you must have the warranty card with hologram sticker and date.

Delivery:
Delivery is made in condition through any courier service throughout Bangladesh. The buyer has to bear all the expenses. However, if the amount is more, home delivery is done by own transport.
