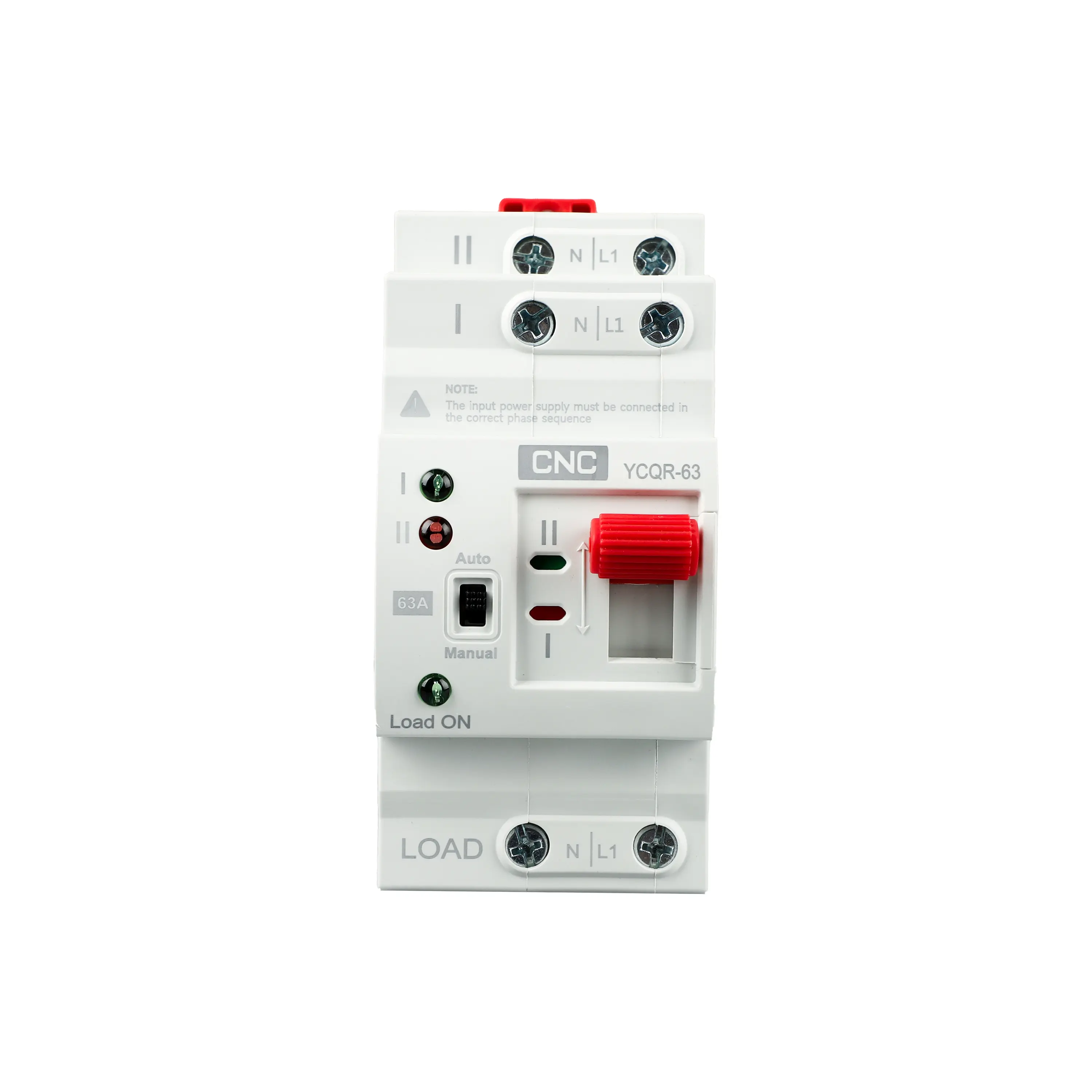

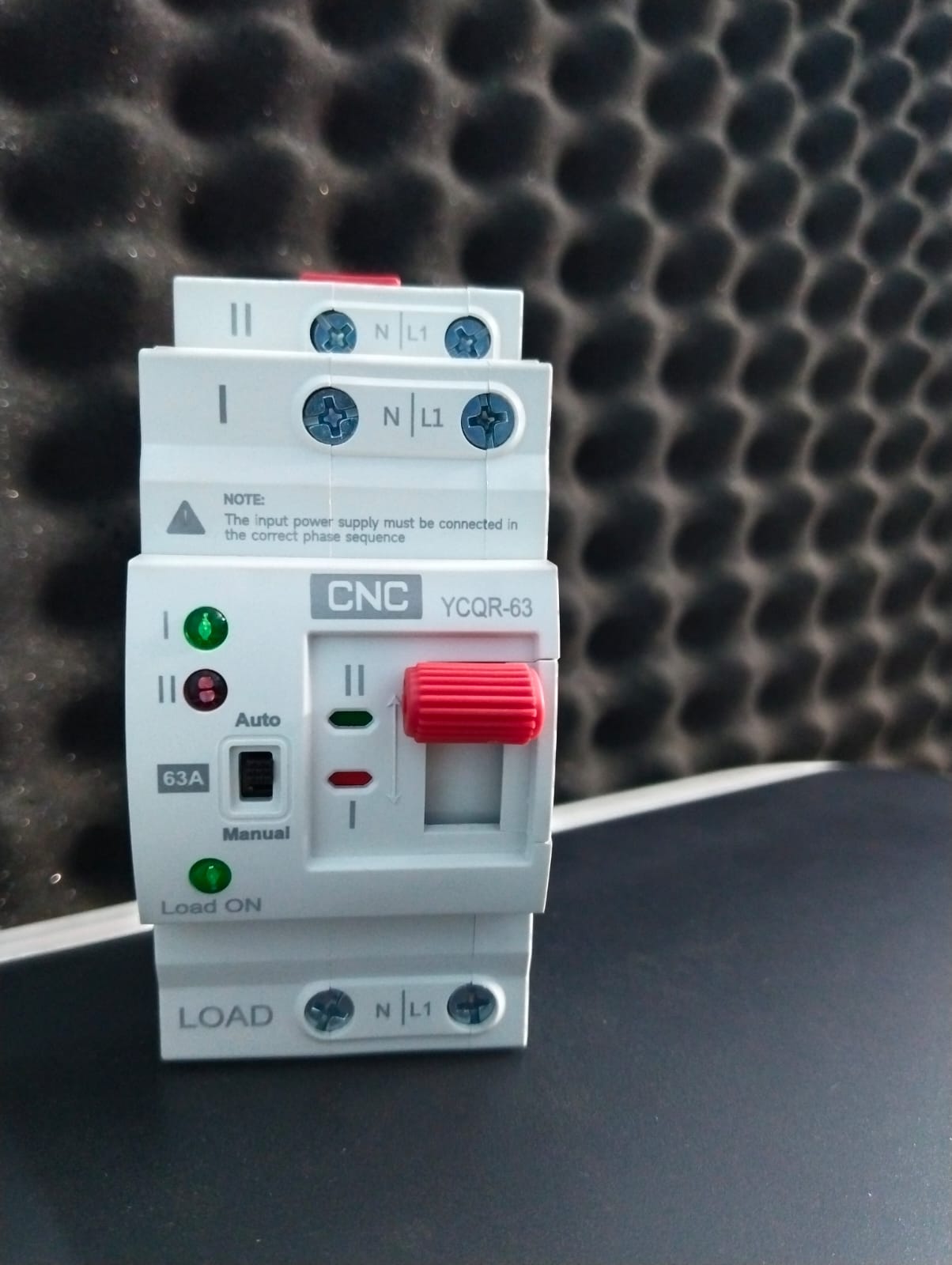

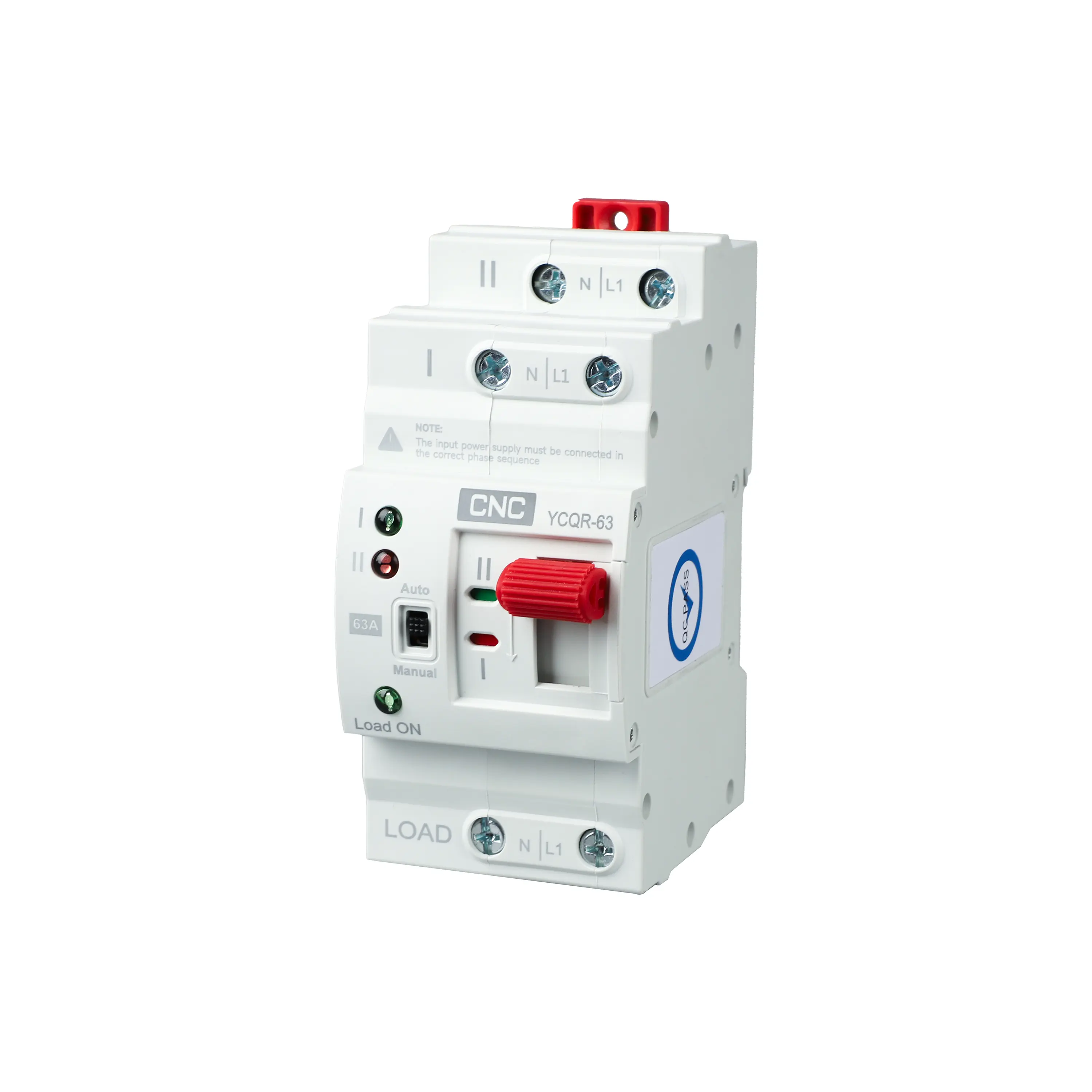

YCQR-63 Mini Automatic Transfer Switch (PC Class)

✅ Model: YCQR-63

✅ Rated current of shell frame grade: 63

✅ Rated operating current le(A): 63A

✅ Rated insulation voltage UI: 690V

✅ Rated impulse withstand voltage Uimp: 8kV

✅ Rated working voltage Ue: AC220V/AC110V

✅ Rated frequency: 50/60Hz

✅ Class: PC class: can be switched on and loaded without generating short-circuit current

✅ Pole number:2P

✅ Rated short-circuit current lq: 50KA

✅ Short circuit protection device (fuse): RT16-00-63A

✅ Rated impulse withstand voltage: 8kV

✅ Control circuit: Rated control voltage Us: AC220V, SOHz, Normal working conditions: 85%Us-110%Us

✅ Auxiliary circuit: AC220V/110V SO Hz le=SA

✅ Contactor change-over time: <50ms

✅ Operation change-over time: <50ms

✅ Return change-over time: <50ms

✅ Power off time: <50ms

✅ Change-over operation time: <50ms

✅ Mechanical life: ≥8000 times

✅ Electrical life: ≥1500 times

✅ Usage category: AC-31B

Warranty: 1 year official brand warranty.

Note:

1. Warranty will not be valid for damage caused by incorrect installation.

2. It is better to give a maximum of 80% load. If the load is correct, the device will serve for a long time, InshaAllah.

3. Warranty will not be valid for overload/lightning/terminal burnout or external damage.

4. For any problem or assistance, call the support center.

5. To get the warranty, you must have the warranty card with hologram sticker and date.

Delivery: Delivery is done in condition through any courier service throughout Bangladesh. The buyer has to bear all the expenses. However, if the amount is more, home delivery is done by own transport.

Type of payment: 100% cash on delivery (home delivery) is available for any product up to 2500/= taka throughout Bangladesh (conditions apply)*
