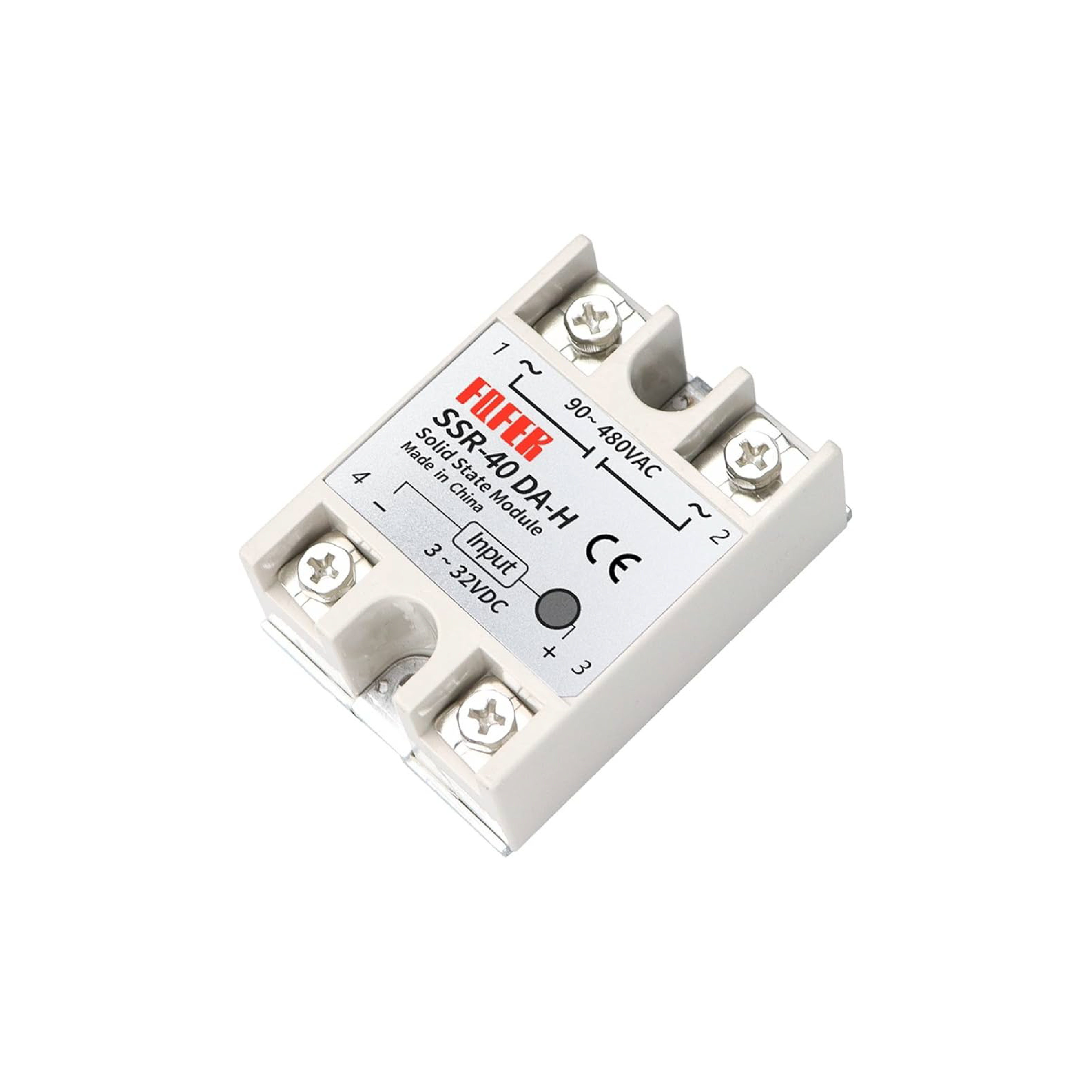

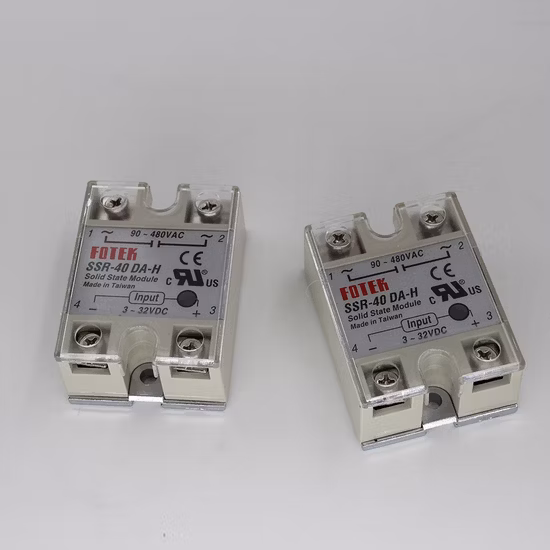

Fotek SSR-40 DA-H Solid State Relay
৳700
৳520
Fotek SSR-40 DA-H Solid State Relay

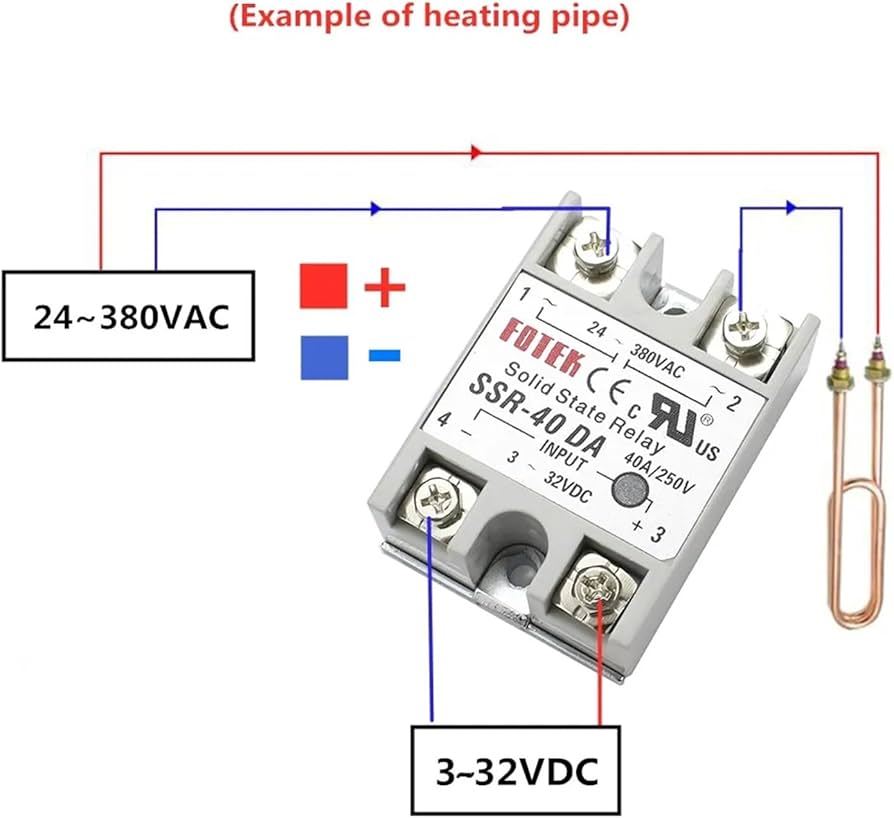

This is SSR-40DA Solid State Relay Module 3-32VDC/24-380VAC 40A. A solid state relay (SSR)
allows you to control high-current AC loads from lower voltage DC control circuitry.
Solid state relays have several advantages over mechanical relays.
FEATURES :
✅ Long service life and high reliability
✅ Reduced electromagnetic interference
✅ Highly reliable, compact size designed to offer users maximum simplicity
ADVANTAGES :
✅ High Dielectric strength over 4KV
✅ High Isolation strength over 100MΩ/500VDC
✅ With over heat protection Circuit (120°C)
✅ High surge current sustenance
✅ High surge voltage sustenance
✅ Conformity with EN60947-4-3 and EN60950
General Specification
✅ Model: SSR-40DA
✅ Dielectric Strength: Over 2.5kVA / 1 min
✅ Trigger Voltage (VDC): 3-32
✅ Switching Voltage (VAC): 24-380@40A
✅ Operating Temperature Range (°C): -20 to 85
✅ Material: ABS
✅ Length (mm): 45.5
✅ Width (mm): 62.5
✅ Height (mm): 24
✅ Weight (gm): 95
✅ Shipment Weight: 0.1 kg
✅ Shipment Dimensions: 7 × 6 × 3 cm
Delivery: Delivery is done through any courier service in Bangladesh. The buyer has to bear all the expenses. However, if the quantity is more, home delivery is done by own transport.
Payment method: 100% cash on delivery (home delivery) facility is available for any product up to 2500/= taka throughout Bangladesh. (Conditions apply)*
