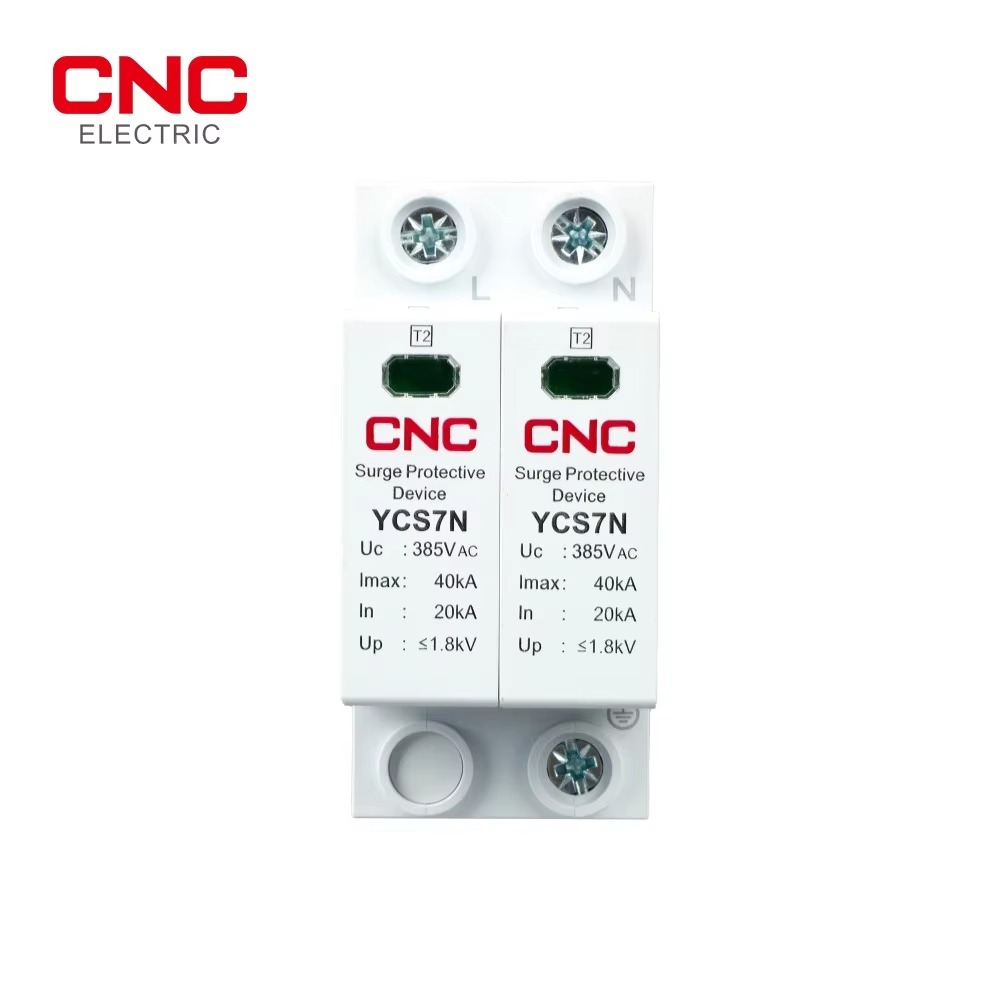

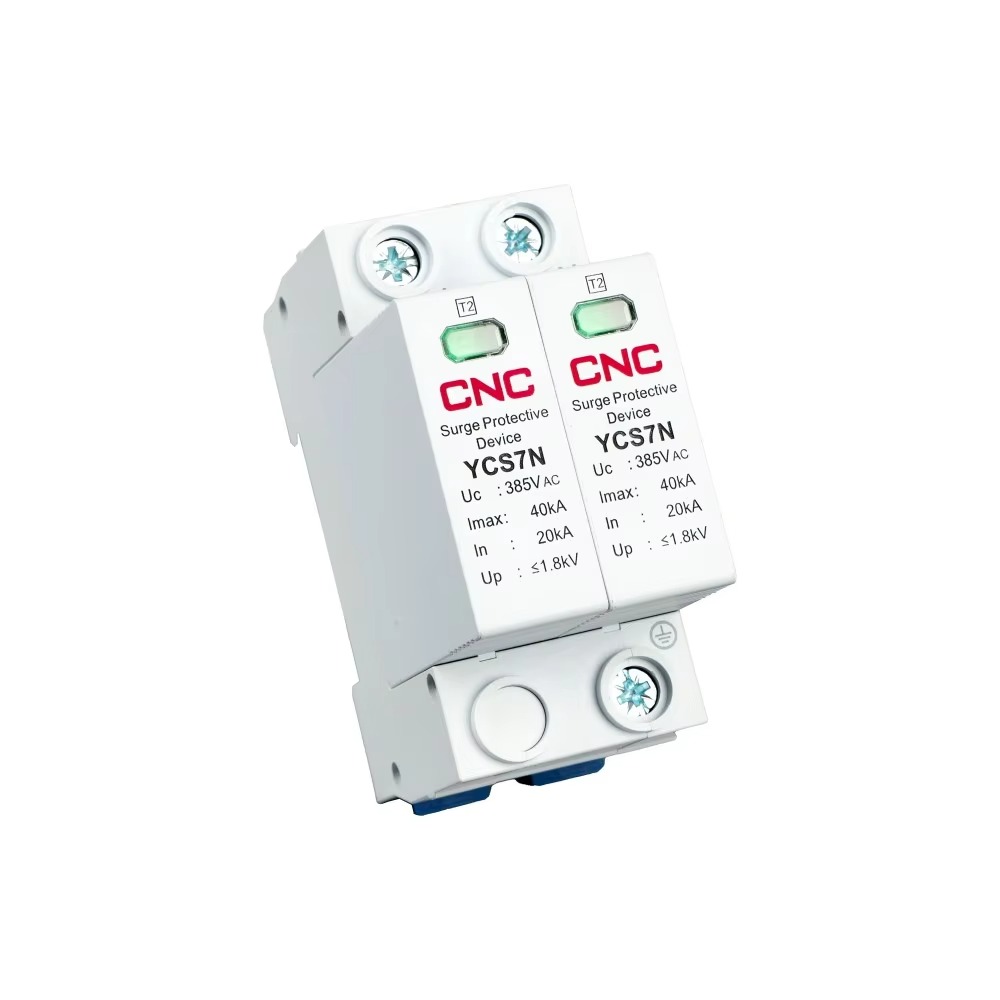

Surge Protective Device-AC CNC

~~৳1850~~ ৳1480

Ratting : (0)

Brand : CNC

Pay From

Fast Delivery all across the country
Safe Payment
100% Authentic Product

- +

হোয়াটসঅ্যাপে অর্ডার করুন

কল অর্ডার

Product Details:
✅ Product Type: AC Surge Protection Device (SPD)
✅ Brand: CNC
✅ Model: YCS7N
✅ Poles: 2P (Double Pole: Line + Neutral or Line + Line)
✅ Type: Type 2 (Some variants are T1+T2 Certified)
✅ Maximum Continuous Operating Voltage (Uc): 275V AC
✅ Nominal Discharge Current (In): Varies by type, typically 20kA (8/20 µs waveform) maximum.
✅ Maximum Discharge Current (Imax): Typically 20kA, but variants up to 80kA are available
✅ Protection Level (Up): ≤ 1.4kV (for 40kA Imax version)
✅ Installation: 35mm DIN Rail Mountable
✅ Design: Modular, Plug-and-Play Lightning Protection Module
✅ Standards Compliance: IEC61643-11, EN61643-11 (for specific models)
✅ Country of Origin: China

Features:
✅ Application: Suitable for use in power supply systems such as TT, IT, TN-S, TN-C, and TN-C-S networks with rated voltages up to 230/400V AC.
✅ Compact Design: The device is designed to match the length of standard miniature circuit breakers (MCBs), creating a seamless and aesthetically pleasing fit within electrical distribution boards.
✅ Certified Reliability: The YCS7N series is TUV certified and meets other standards such as CE, ROHS, and ISO 9001.
✅ Durable Construction: Features a robust design with high-quality UL94-V0 thermoplastic housing material.
✅ User-Friendly: Designed for easy installation and maintenance with a plug-and-play module design.
