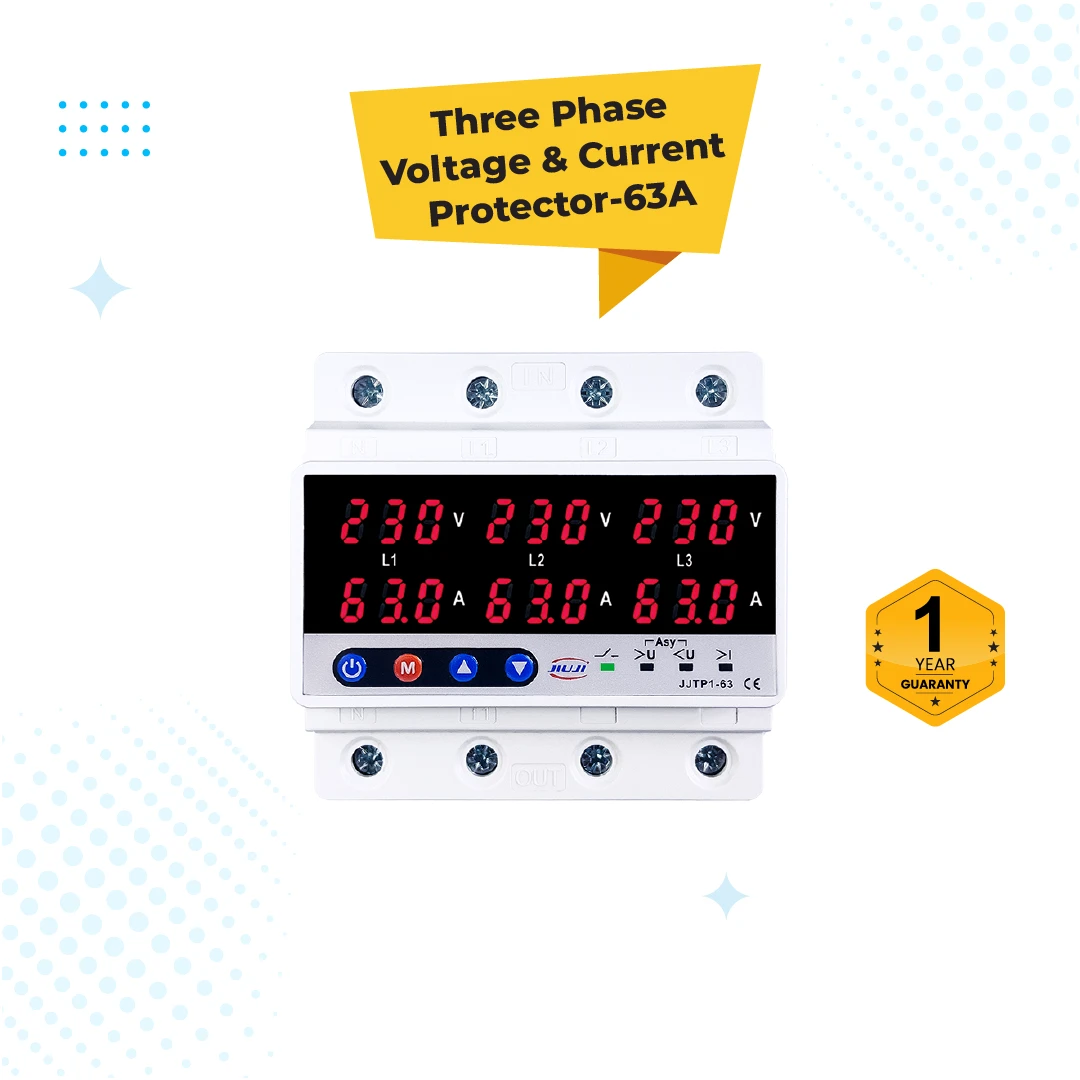

Three Phase Voltage & Current Protector

~~৳4500~~ ৳3250

Ratting : (0)

Brand : JIUJI

Pay From

Fast Delivery all across the country
Safe Payment
100% Authentic Product

- +

হোয়াটসঅ্যাপে অর্ডার করুন

কল অর্ডার

Product Details:
Motor burnout problems can be avoided once and for all with a 3-Phase Voltage & Current Protector—there is no better alternative.
✅ Phase Sequence/Failure Protection, Adjustable Over-Voltage Protection, Adjustable Under-Voltage Protection, Adjustable Over-Current Protection, Unbalance Protection, and Automatic Time-Adjustable Recovery features that will protect your motor or valuable machines/equipment from any unwanted damage.
✅ Installation and usage are very easy.

Details:
Three-Phase AC 380V/400V 63A Multifunctional Over & Under Voltage Protection Device, Automatic Recovery Voltage Relay, JIUJI Brand. Automatic Over-Voltage and Under-Voltage Protector is suitable for three-phase AC 380V, 50/60Hz, with a rated working current of 63A or less. Its main feature is that when there is an over-voltage or under-voltage problem in the circuit, the product can immediately cut off the power supply to protect electrical equipment from damage. In addition, when the circuit voltage returns to normal, the protector can automatically turn the power supply back on.
✅ Adjustable Over-Voltage Protection
✅ Adjustable Under-Voltage Protection
✅ Adjustable Over-Current Protection
✅ Unbalance Protection
✅ Phase Sequence/Failure Protection
✅ Automatic Time-Adjustable Recovery

Features:
✅ Technical parameters
✅ Pole: 3P
✅ Rated Current: 63A

Adjustable Setting Range:
✅ Over-Voltage: 390-500V (Default: 430V)
✅ Under-Voltage: 140~370V (Default: 330V) Over-Current: 1~63A
✅ Trip Time: 1-30S (Default: 1S)
✅ Recovery Time: 1-500S (Default: 30S)
✅ Power-On Delay Time: 1-500S (Default: 10S) Advantages:
✅ Over-Voltage Protection, Under-Voltage Protection
✅ Over-Current Protection
✅ Unbalance Protection
✅ Phase Sequence Protection
✅ Automatic recovery
✅ Working Voltage/Current Display
✅ Adjustable Voltage/Current/Time/...
✅ 3Ph Voltage Unbalance Value: 20-99V (Default: 20V)
✅ Phase Sequence Switch: OFF/ON (Default: ON)
✅ Continuous Current Recovery Time: 0~20 (Default: OFF) Power Consumption: <2W
✅ Electro-Mechanical Life: 100,000 Times
✅ Installation: 35mm DIN Rail

Warranty:
1 Year Official Brand Warranty.

Note:
1. Warranty will not be applicable for damage caused by incorrect installation.
2. It is recommended to use a maximum of 80% load. With the proper load, the device will provide long-lasting service, InshaAllah.
3. Warranty will not be applicable for overload, lightning strikes, burnt terminals, or external damage.
4. For any problem or assistance, please call the support center.
5. To claim the warranty, the warranty card with the hologram sticker and date must be available.

Delivery:
Delivery is available across Bangladesh through any courier service on a conditional basis. The buyer must bear all courier charges. However, for large quantities, home delivery is provided using our own transportation.

Payment Method:
For any product up to 2500/= BDT, 100% Cash On Delivery (Home Delivery) facility is available across Bangladesh. (Conditions Apply)
